Bonded metal sheets

WeDaPlan – the bonded metal sheet from Stahl-Service Westhoff.

WeDaPlan bonded metal sheets are fully galvanised light gauge metal sheets coated on both sides. Optimum protection is provided on the upper side by a coloured PVC-P waterproofing membrane and a 20 µm-thick zinc coat, and underneath by a protective backing coat of organic paint and a 20 µm-thick zinc coat. It is possible to weld bonded WeDaPlan metal sheets with any other bonded roofing sheets without any difficulty.

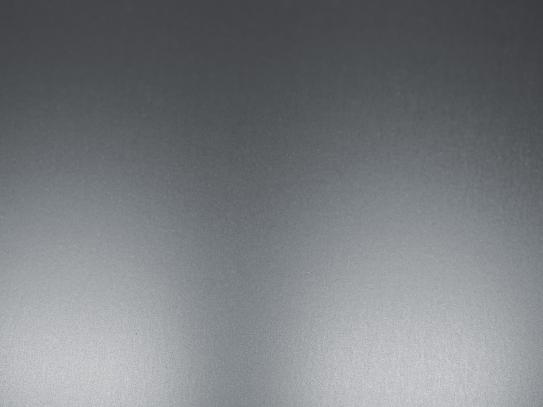

WeDaPlan

Coating composition – WeDaPlan

Coating composition – WeDaPlan
Coating composition – WeDaPlan

Specifications

Thickness 0.60 mm according to EN 10346
Width 1,000 mm
Steel grade DX51D + Z275 according to EN 10346
Zinc layer 275 g/m² according to EN 10346
Topside PVC-P waterproofing membrane
Backside Backing coat of protective paint, ca. 7 µm
Adhesion of membrane Standardised Erichsen Test according to ECCA

Coil coating

The coil coating process coats flat sheets (coils) with liquid paint. Coil coating is the most economic, environment-friendly and reliable process there is for producing coated materials in large amounts. The distinguishing features of the final coil-coated product are high corrosion resistance, good formability as well as a decorative and high-quality appearance. The multi-layer composition of the paint coating is produced with absolute uniformity in a continuous process on state-of-the-art systems that maintain process conditions at a constant level (see above graphic). After being cleaned, degreased, rinsed, pretreated and rinsed again, the galvanised steel core is forwarded for a priming coat (primer) to be applied and then finally coated with the coloured top coat, which is baked on at approx. 250  C. A protective foil is applied partially to the cooled sheet, which is then recoiled.

Now, the finished coil is ready for delivery or further mechanical processing to be turned into slit strips, sheets or cut-to-size sheets:

Product overview

We sell coils, slit strips, sheets and sheets cut-to-size.

There is hardly a material which is used so frequently in the processing industries than steel sheet. In most cases, however, purchasing ex-works is not a possibility. As a steel service centre, we close the gap between the production in the smelter and the need of the end user through processing technology and logistical means.

Our company manufacture, process and store flat steel products according to your needs and in numerous types and finishes. Our products can be obtained as coils, slit strips, sheets or sheets cut-to-size.

State-of-the-art systems and forward-looking product portfolio offer our customers a peace of mind regarding the delivery capacity and guarantee a constantly reliable supply with top-quality flat steel products.

Our inventory range brings colours into play.

The requirements are getting more and more individual, and the materials more diverse than ever before. Metallic surfaces and a few coil coated standard colours haven’t been able to cut the mustard for some time, unable to satisfy the wishes of the wide range of branches in the industry and construction. Our range of surfaces is just as wide as the range of branches, and our coil coating material stock comes in over 140 customary RAL colour shades – and we keep all of them in stock. Swift and straightforward delivery also plays a prominent role.
